A choice of many models

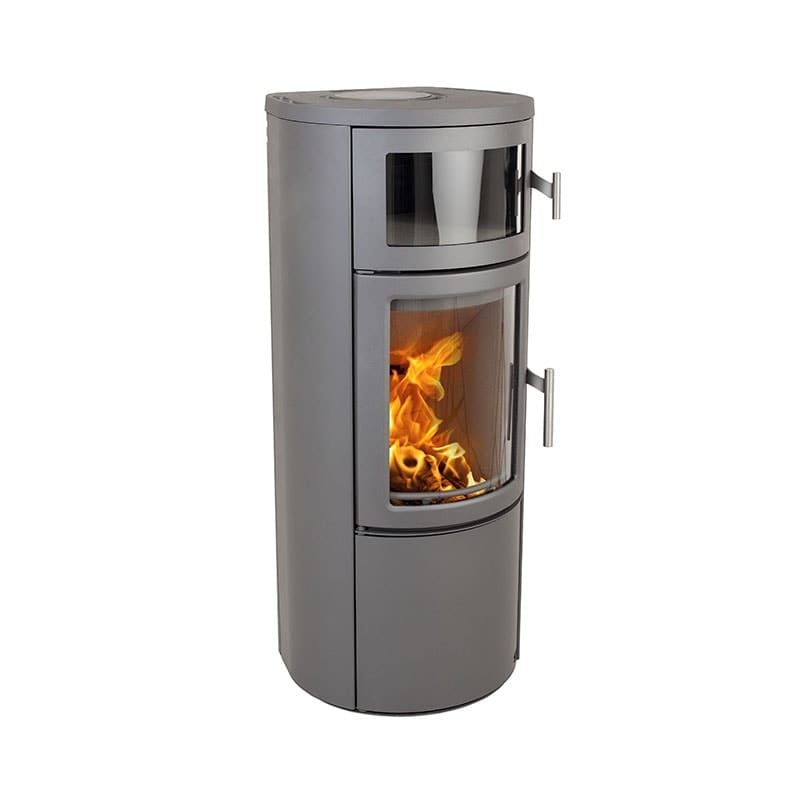

Scan-Line 500 + 510 + 520B series is based on the steel models, available in 8 different versions.

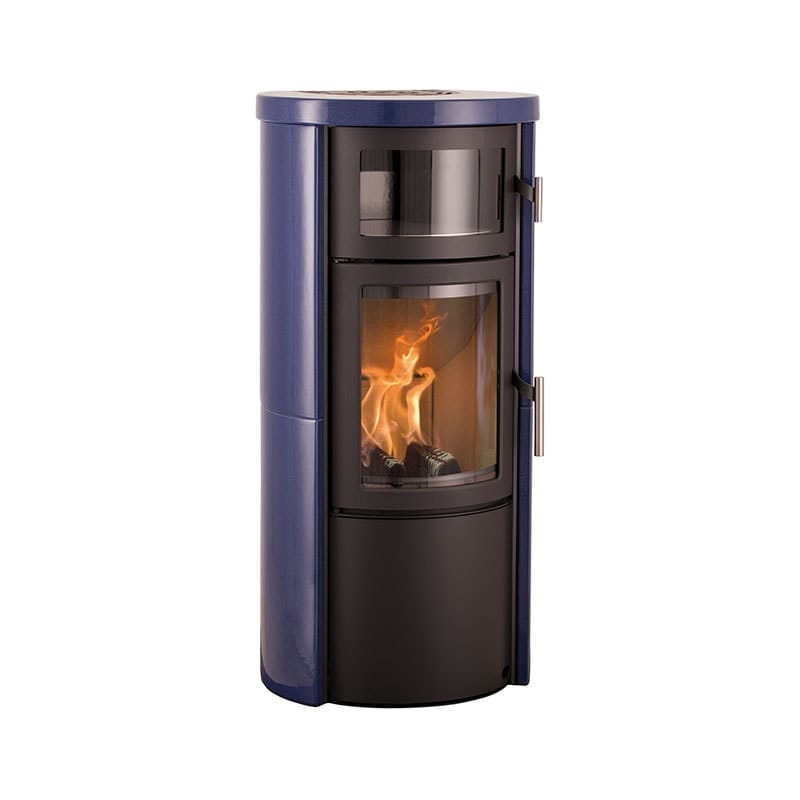

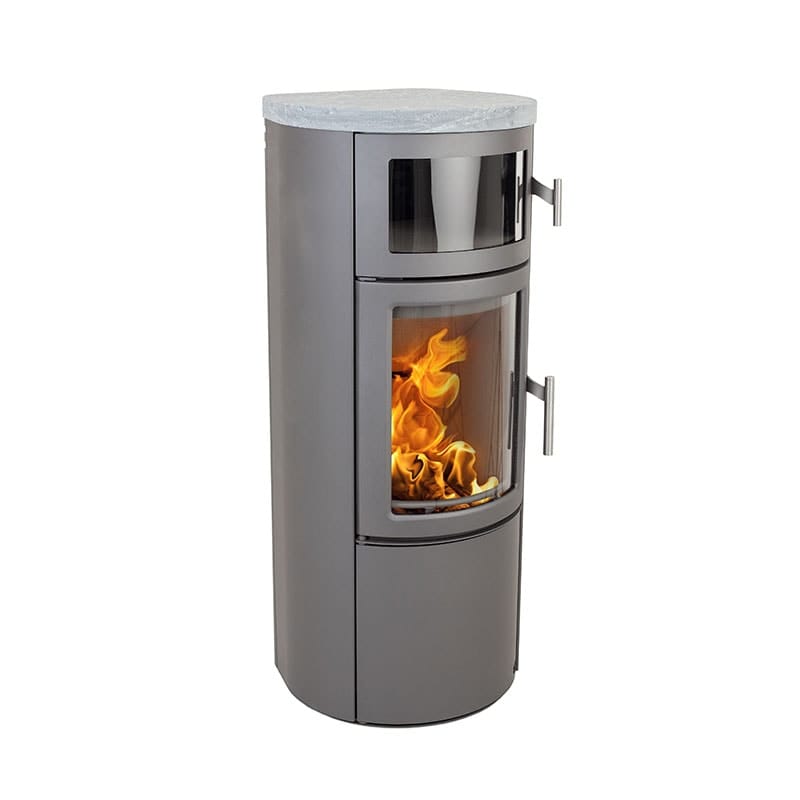

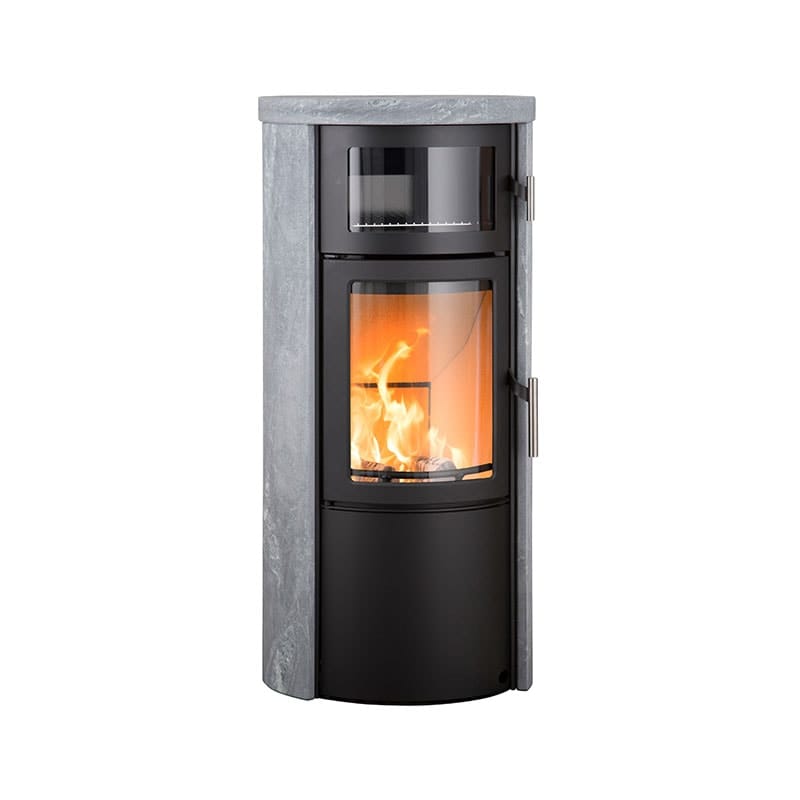

These are supplemented by soapstone tops, complete soapstone and ceramic models in 42 different colours, which can be freely combined just as you dream about.

The combustion chamber can accommodate a lot of wood, and the Scan-Line 500 series naturally meets all current regulatory requirements, thanks to the latest clean burn combustion technology.

Height will increase with tops up to 1210

Nominal KW 6.1

Output range 3-8kw

Hetas up M2 40-130

Weight 134 -229 kgs

Fuel Volume 1.24

Combustion Chamber width mm 340

Distance to flammable materials

At the sides mm 350

Behind the stove 150mm

Distance to furniture 1000mm

Efficiency 83%
